YATSUNAMI for Oil (FC-CAC)

Reliability and Achievements Favored by Ships for Many Years

Worked by
Manual

wing pump YATSUNAMI series

YATSUNAMI (Standard)

FC-CAC

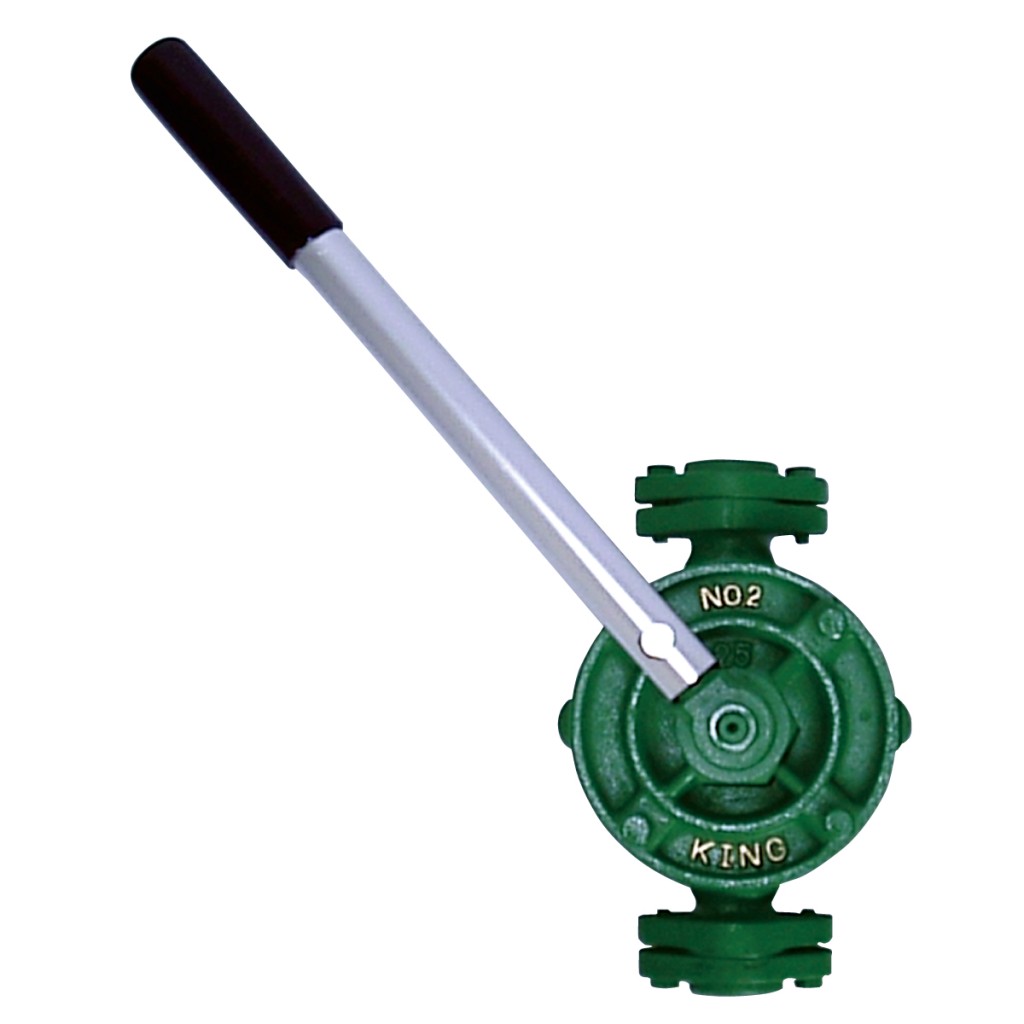

wing pump KING series wing pump companion flange
Companion-flange (Standard) Round-flange (JIS 5K / JIS 10K)



>> Usage

●Transport of various oils (General oil, Diesel oil, Light oil, Kerosene)
●Press-fitting lubricating oil and transferring hydraulic oil to machinery



>>Advantages

●sucking head: 6m (2.5m when dry) / lifting head: 15m
●Reliability and achievements that have been favored by ships for many years
●Can be used even in places without power source supply



>>Features

●Longtime seller pump
●2 types flange: Companion flange (with screw) and Round flange (for JIS5K/10K)
●Abundant sizes variety from No.0 (15A) to No.7 (50A)



>>Used at …

●Marine & Shipping industry
●Generator on ship
●Mechanical equipment

etc.





Specification Table

Product name :
YATSUNAMI Standard
YATSUNAMI JIS5K / JIS10K
Acceptable liquid
Oil (Up to 5,000 cP)
Oil (Up to 5,000 cP)
Sucking / Lifting Height (m)
2.5 / 15.0
2.5 / 15.0
Materials
Body
FC / CAC
FC / CAC
Packing
NBR
NBR
Flange
Companion flange
Round flange



Special order (Teflon packing) for Gasoline is available



Size
NO.0-15
NO.1-20
NO.2-25
NO.3-32
NO.5-40
NO.7-50
Discharge Volume(cc / str)
240
240
400
650
1100
2000

*1Stroke : Reciprocating movement of lever



wing pump YATSUNAMI series

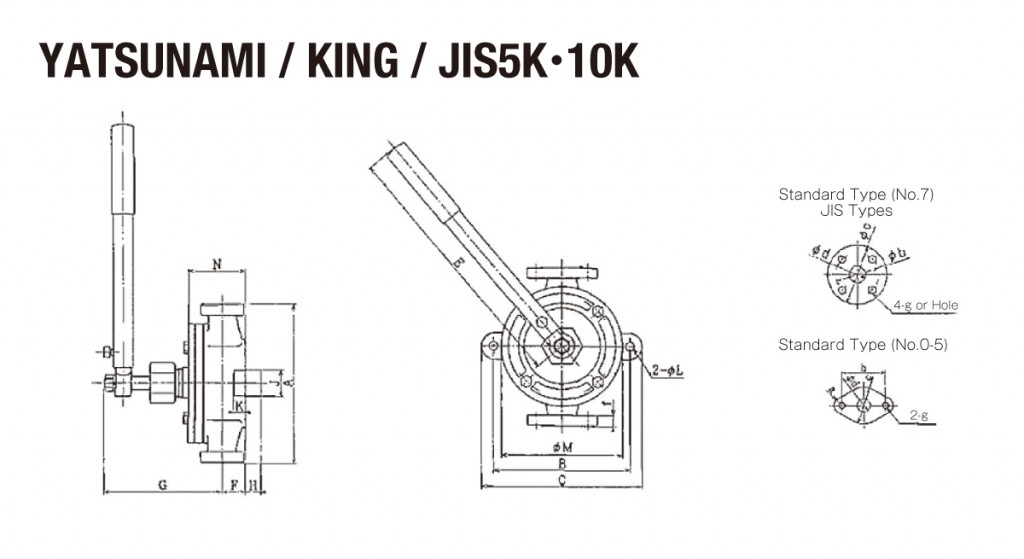

YATSUNAMI Standard Type Types Dia. Main Body Dimension Flange Dimension Weight(kg) Companion Flange Dia.
A B C E F G H J K L M N a b c d f g
NO.0 15 180 132 165 330 30 135 20 35 18 11 137 67 10 60 44 20 12 2-M8 5.3 Rc1/2
1 20 180 132 165 330 30 135 20 35 18 11 137 67 10 60 44 20 12 2-M8 5.3 Rc3/4
2 25 208 146 177 365 33 145 22 36 15 11 156 75 12 66 56 25 15 2-M8 7.2 Rc1
3 32 245 168 204 400 44 179 21 43 15 16 178 95 15 76 61 32 15 2-M10 8.9 Rc1 1/4
5 40 295 198 235 460 45 195 20 43 20 16 205 103 16 85 72 40 18 2-M10 13.6 Rc1 1/2
7 50 329 235 282 600 50 225 25 48 25 16 240 115 105 130 50 20 4-M12 22.3 Rc2
Flange Type(JIS 5K) Types Dia. Main Body Dimension Flange Dimension Weight(kg) Companion Flange Dia.
A B C E F G H J K L M N a b c d f g
JIS5K-15 15 194 132 165 330 30 135 20 35 15 11 137 70 60 80 20 14 4-12 5.9
JIS5K-20 20 194 132 165 330 30 135 20 35 15 11 137 70 65 85 20 14 4-12 5.9
JIS5K-25 25 210 146 177 365 33 145 17 37 16 11 153 75 75 95 25 15 4-12 7.6
JIS5K-32 32 248 168 204 400 40 165 24 42 20 16 178 93 90 115 32 16 4-15 10.5
JIS5K-40 40 293 198 235 460 45 195 20 43 20 16 205 100 95 120 40 18 4-15 13.6
JIS5K-50 50 329 235 282 600 50 225 25 48 25 16 240 115 105 130 50 18 4-15 20.7
Flange Type(JIS 10K) Types Dia. Main Body Dimension Flange Dimension Weight(kg) Companion Flange Dia.
A B C E F G H J K L M N a b c d f g
JIS10K-15 15 200 132 165 330 30 135 20 35 15 11 137 70 70 95 20 15 4-15 6.6
JIS10K-20 20 200 132 165 330 30 135 20 35 15 11 137 70 75 100 20 15 4-15 6.6
JIS10K-25 25 220 146 177 365 33 145 17 37 16 11 153 75 90 125 25 20 4-19 9.0
JIS10K-32 32 250 168 204 400 40 165 24 42 20 16 178 93 100 135 32 20 4-19 11.5
JIS10K-40 40 298 198 235 460 45 195 20 46 20 16 205 100 105 140 40 20 4-19 14.6
JIS10K-50 50 330 235 282 600 50 225 25 48 25 16 240 115 120 155 50 20 4-19 20.7
